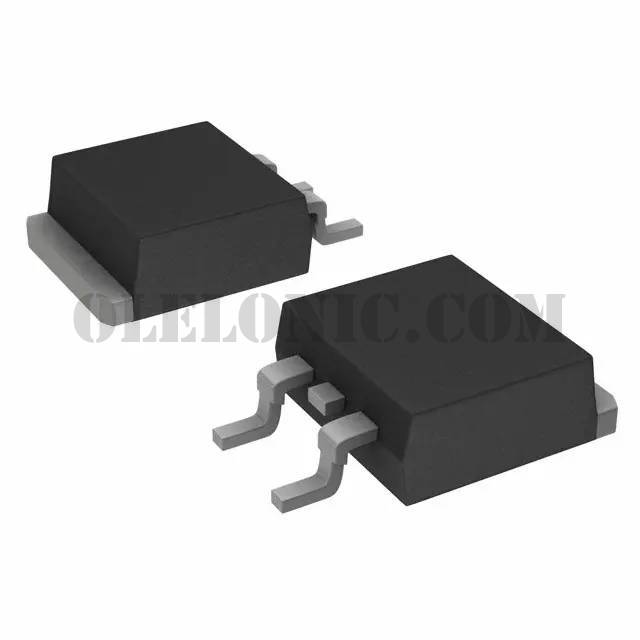

SQD50N04-5M6_GE3

SQD50N04-5M6_GE3

Part NumberSQD50N04-5M6_GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 40V 50A TO-252

DatasheetSQD50N04-5M6

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 50A (Tc) 71W (Tc) Surface Mount TO-252AA

To learn about the specification of SQD50N04-5M6_GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SQD50N04-5M6_GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SQD50N04-5M6_GE3.
We are offering SQD50N04-5M6_GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SQD50N04-5M6_GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SQD50N04-5M6
Standard Package	2000
Manufacturer	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	85nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4000pF @ 25V
FET Feature	-
Power Dissipation (Max)	71W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252AA
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
