Categories	Capacitors / Ceramic Capacitors
Datasheet	SQCS, SQCF Series
Standard Package	4000
Manufacturer	AVX Corporation
Series	SQ
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	100pF
Tolerance	±5%
Voltage - Rated	250V
Temperature Coefficient	A
Operating Temperature	-55°C ~ 125°C
Features	High Q, Low Loss
Ratings	-
Applications	RF, Microwave, High Frequency

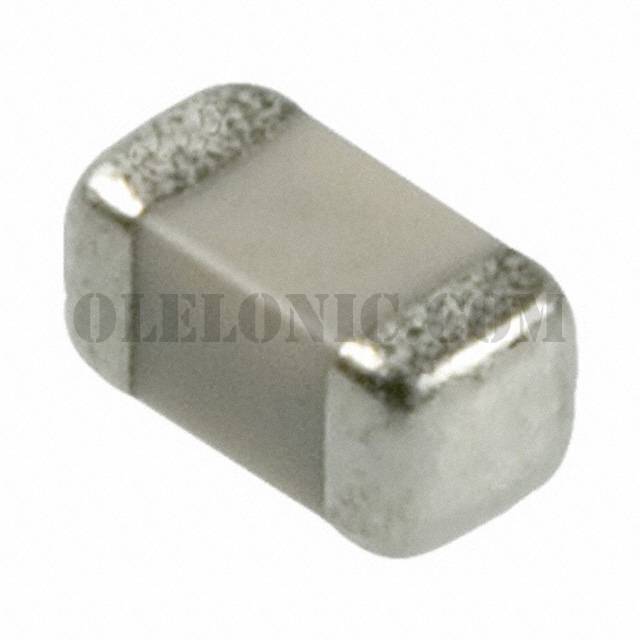

Mounting Type	Surface Mount, MLCC
Package / Case	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.032" W (1.60mm x 0.81mm)
Height - Seated (Max)	-
Thickness (Max)	0.030" (0.76mm)
Lead Spacing	-
Lead Style	-
