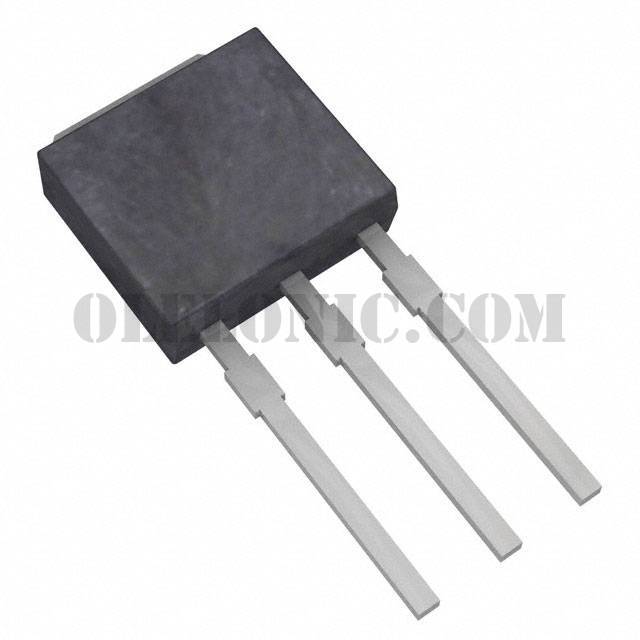

SPU02N60C3BKMA1

SPU02N60C3BKMA1

Part NumberSPU02N60C3BKMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 650V 1.8A IPAK

DatasheetSP(D,U)02N60C3

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 1.8A (Tc) 25W (Tc) Through Hole PG-TO251-3

To learn about the specification of SPU02N60C3BKMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SPU02N60C3BKMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SPU02N60C3BKMA1.
We are offering SPU02N60C3BKMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SPU02N60C3BKMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SP(D,U)02N60C3
Standard Package	1500
Manufacturer	Infineon Technologies
Series	CoolMOS™
Packaging	Tube
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	1.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3Ohm @ 1.1A, 10V
Vgs(th) (Max) @ Id	3.9V @ 80µA
Gate Charge (Qg) (Max) @ Vgs	12.5nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	200pF @ 25V
FET Feature	-
Power Dissipation (Max)	25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO251-3
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
