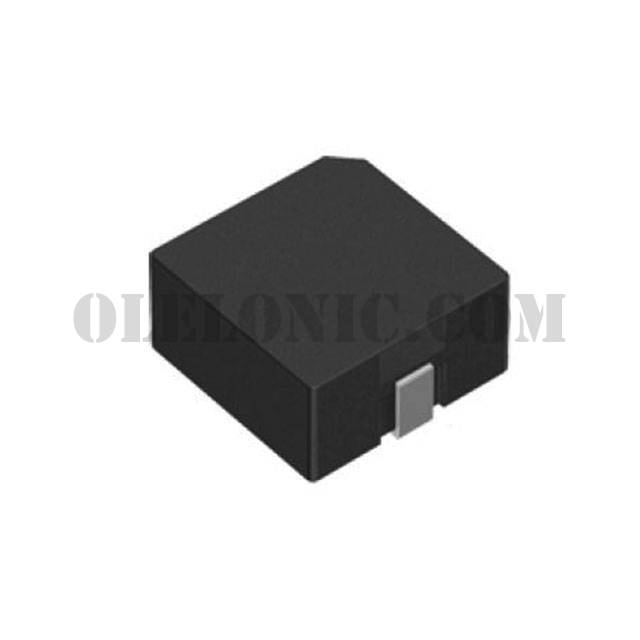

SPM12565XT-1R0M
SPM12565XT-1R0M
Part Number SPM12565XT-1R0M Description FIXED IND 1UH 22A 2.28 MOHM Package / Case 2-SMD, J-LeadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1µH Shielded Wirewound Inductor 22A 2.28mOhm Max 2-SMD, J-Lead
To learn about the specification of SPM12565XT-1R0M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SPM12565XT-1R0M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SPM12565XT-1R0M.
We are offering SPM12565XT-1R0M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SPM12565XT-1R0M - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SPM12565XT Series Standard Package 500 Manufacturer TDK Corporation Series SPM Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Metal Inductance 1µH Tolerance ±20% Current Rating (Amps) 22A Current - Saturation 42A Shielding Shielded DC Resistance (DCR) 2.28mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case 2-SMD, J-Lead Size / Dimension 0.512" L x 0.496" W (13.00mm x 12.60mm) Height - Seated (Max) 0.256" (6.50mm)
