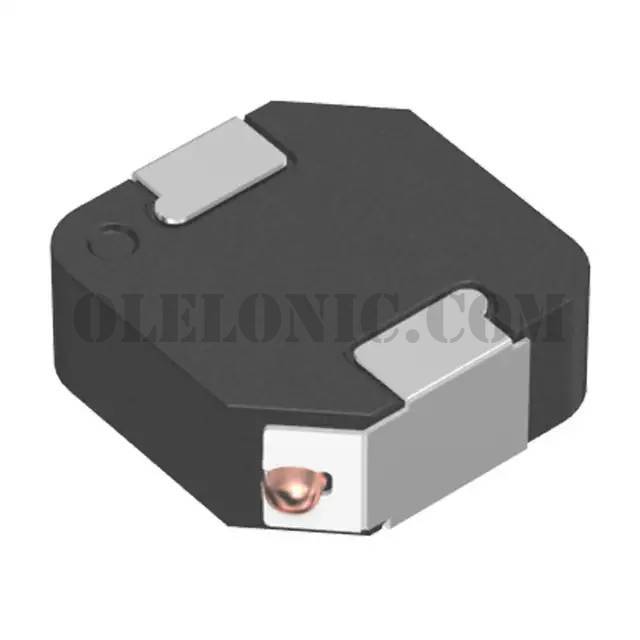

SPM10040T-R56M150

Part NumberSPM10040T-R56M150

ManufacturerTDK Corporation

DescriptionFIXED IND 560NH 15A 1.7 MOHM SMD

DatasheetSPM10040 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560nH Shielded Wirewound Inductor 15A 1.7mOhm Nonstandard

To learn about the specification of SPM10040T-R56M150, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SPM10040T-R56M150 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SPM10040T-R56M150.
We are offering SPM10040T-R56M150 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SPM10040T-R56M150 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SPM10040 Series

Standard Package

500

Manufacturer

TDK Corporation

Series

SPM

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Wirewound

Material - Core

Metal

Inductance

560nH

Tolerance

±20%

Current Rating (Amps)

15A

Current - Saturation

15A

Shielding

Shielded

DC Resistance (DCR)

1.7mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

Inductance Frequency - Test

300kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.394" L x 0.394" W (10.00mm x 10.00mm)

Height - Seated (Max)

0.157" (4.00mm)
