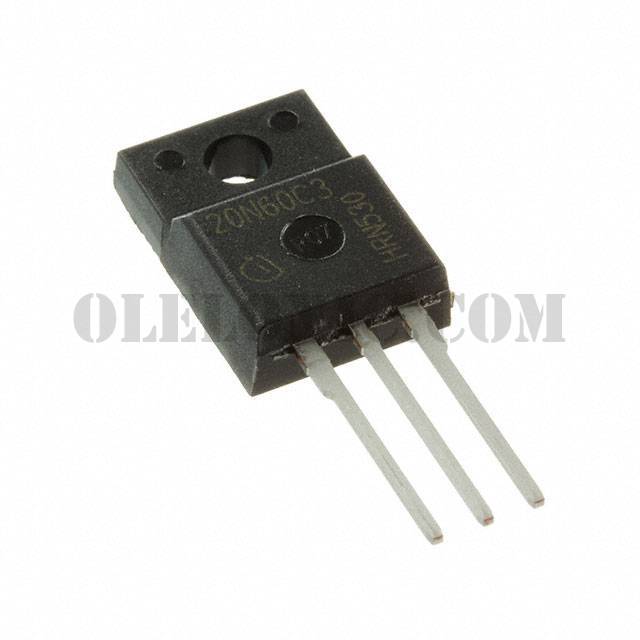

SPA20N60C3XKSA1

SPA20N60C3XKSA1

Part NumberSPA20N60C3XKSA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 600V 20.7A TO220-3

DatasheetSPx20N60C3

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 20.7A (Tc) 34.5W (Tc) Through Hole PG-TO220-3-31 Full Pack

To learn about the specification of SPA20N60C3XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SPA20N60C3XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SPA20N60C3XKSA1.
We are offering SPA20N60C3XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SPA20N60C3XKSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SPx20N60C3
Standard Package	500
Manufacturer	Infineon Technologies
Series	CoolMOS™
Packaging	Tube
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	20.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	190mOhm @ 13.1A, 10V
Vgs(th) (Max) @ Id	3.9V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	114nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2400pF @ 25V
FET Feature	-
Power Dissipation (Max)	34.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-3-31 Full Pack
Package / Case	TO-220-3 Full Pack
