Categories	Discrete Semiconductor Products / Diodes - Variable Capacitance (Varicaps, Varactors)
Datasheet	SMV1263 Series
Standard Package	1
Manufacturer	Skyworks Solutions Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance @ Vr, F	2.9pF @ 2.5V, 1MHz
Capacitance Ratio	2.5
Capacitance Ratio Condition	C0.5/C2.5
Voltage - Peak Reverse (Max)	20V
Diode Type	1 Pair Common Cathode
Q @ Vr, F	-
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount

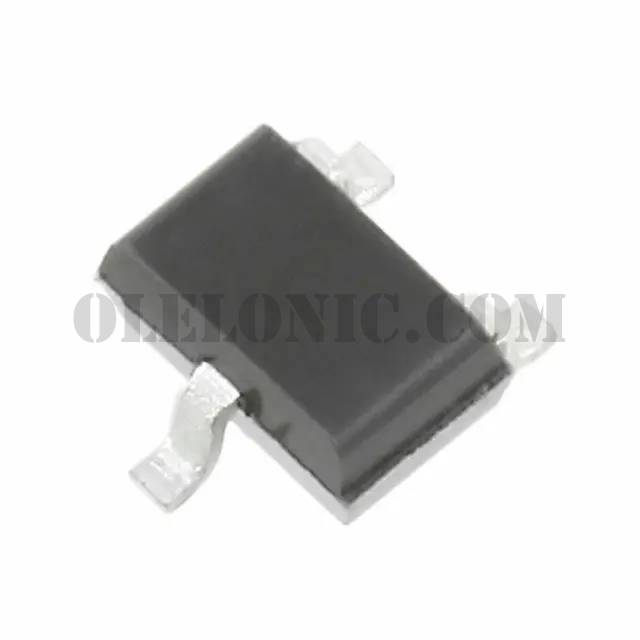

Package / Case	SC-70, SOT-323
Supplier Device Package	SC-70-3
