Categories	Discrete Semiconductor Products / Diodes - RF
Datasheet	Surface Mount Mixer and Detector Schottky Diodes
Standard Package	1
Manufacturer	Skyworks Solutions Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky - 1 Pair Series Connection
Voltage - Peak Reverse (Max)	2V
Current - Max	50mA
Capacitance @ Vr, F	-
Resistance @ If, F	-
Power Dissipation (Max)	75mW
Operating Temperature	150°C (TJ)

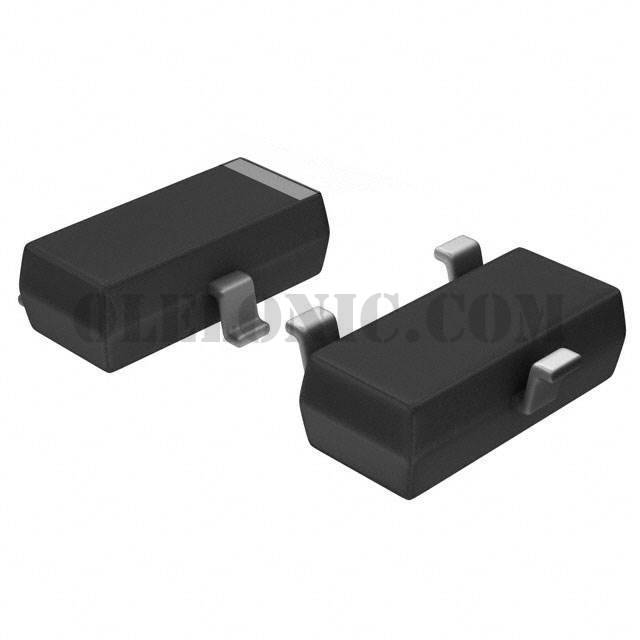

Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3
