Categories	Discrete Semiconductor Products / Diodes - RF
Datasheet	SMP1304 Series
Standard Package	1
Manufacturer	Skyworks Solutions Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	PIN - 2 Pair CA + CC
Voltage - Peak Reverse (Max)	200V
Capacitance @ Vr, F	0.3pF @ 30V, 1MHz
Resistance @ If, F	2Ohm @ 100mA, 100MHz
Power Dissipation (Max)	250mW
Operating Temperature	-65°C ~ 150°C (TA)

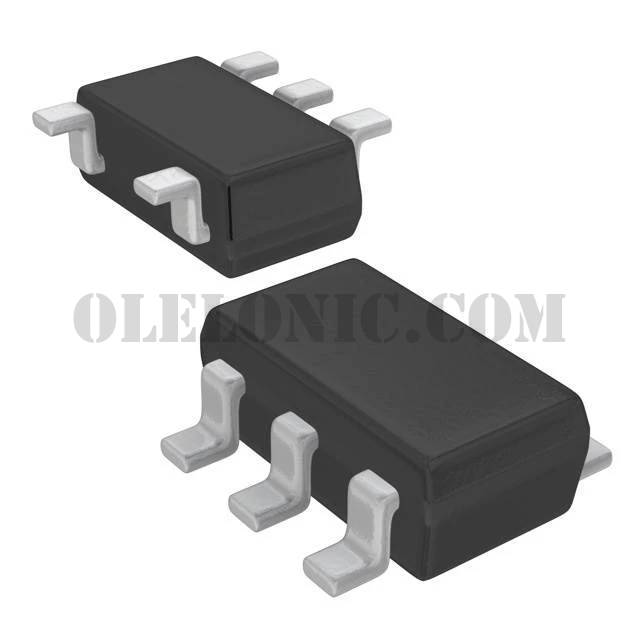

Package / Case	SOT-5
Supplier Device Package	SOT-5
Base Part Number	SMP1304-027
