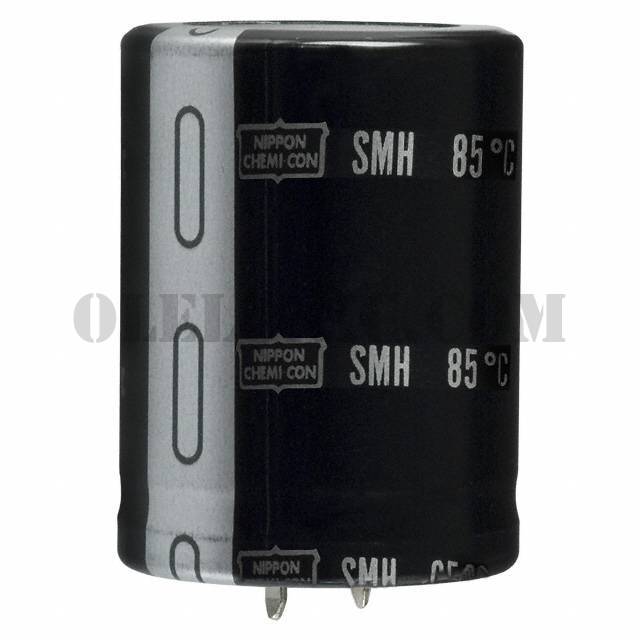

SMH63VS682M30X40T2

Part NumberSMH63VS682M30X40T2

ManufacturerUnited Chemi-Con

To learn about the specification of SMH63VS682M30X40T2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SMH63VS682M30X40T2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SMH63VS682M30X40T2.
We are offering SMH63VS682M30X40T2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum Electrolytic Capacitors
Standard Package	200
Manufacturer	United Chemi-Con
Series	SMH
Packaging	Tray
Part Status	Obsolete
Capacitance	6800µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	37mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	4.27A @ 120Hz
Ripple Current @ High Frequency	5.124A @ 100kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.575" (40.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
