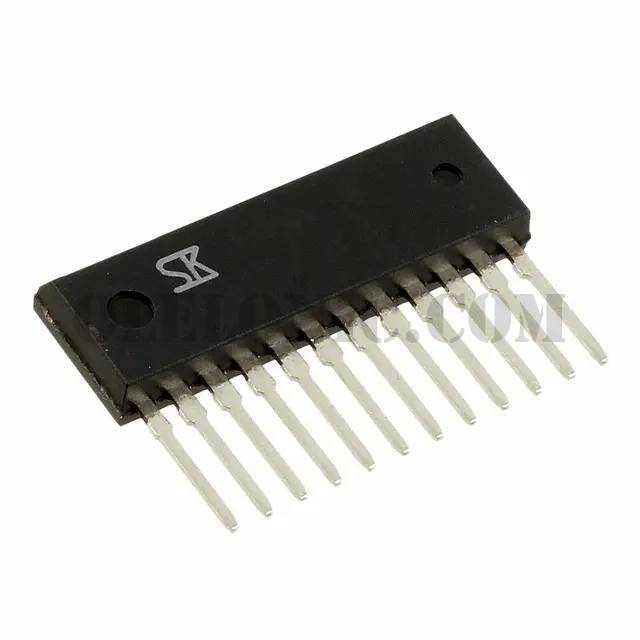

SMA5106

Part NumberSMA5106

ManufacturerSanken

DescriptionTRANS 4NPN DARL 120V 5A

DatasheetSMA5106

Package / Case12-SIP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 4 NPN Darlington (Quad) 120V 5A 5W Through Hole 12-SIP

To learn about the specification of SMA5106, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SMA5106 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SMA5106.
We are offering SMA5106 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SMA5106 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	SMA5106
Standard Package	18
Manufacturer	Sanken
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	4 NPN Darlington (Quad)
Current - Collector (Ic) (Max)	5A
Voltage - Collector Emitter Breakdown (Max)	120V
Vce Saturation (Max) @ Ib, Ic	1.5V @ 3mA, 3A
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	2000 @ 3A, 2V
Power - Max	5W
Frequency - Transition	-
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	12-SIP
Supplier Device Package	12-SIP
