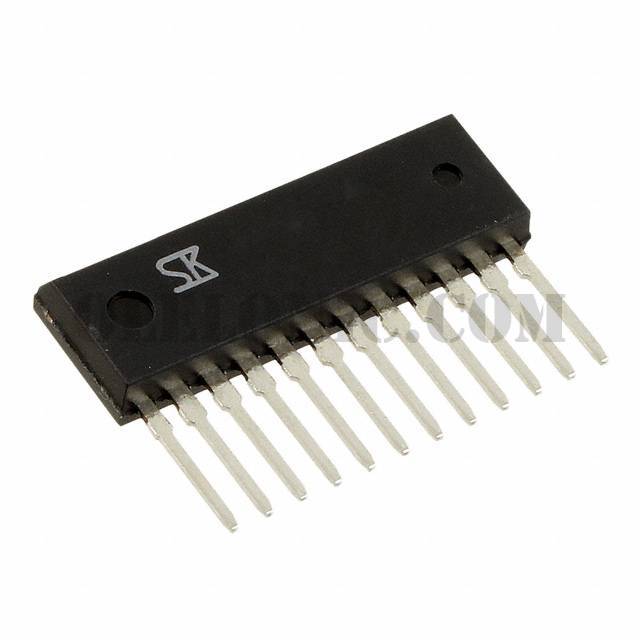

SMA4030


SMA4030

Part NumberSMA4030

Manufacturer

Description

Datasheet

Package / Case12-SIP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SMA4030 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet
Standard Package18
ManufacturerSanken
Series-
PackagingTube
Part StatusActive
Transistor Type4 NPN Darlington (Quad)
Current - Collector (Ic) (Max)3A
Voltage - Collector Emitter Breakdown (Max)100V
Vce Saturation (Max) @ Ib, Ic1.5V @ 3mA, 1.5A
Current - Collector Cutoff (Max)10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce2000 @ 1.5A, 4V
Power - Max4W
Frequency - Transition40MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case12-SIP
Supplier Device Package12-SIP
