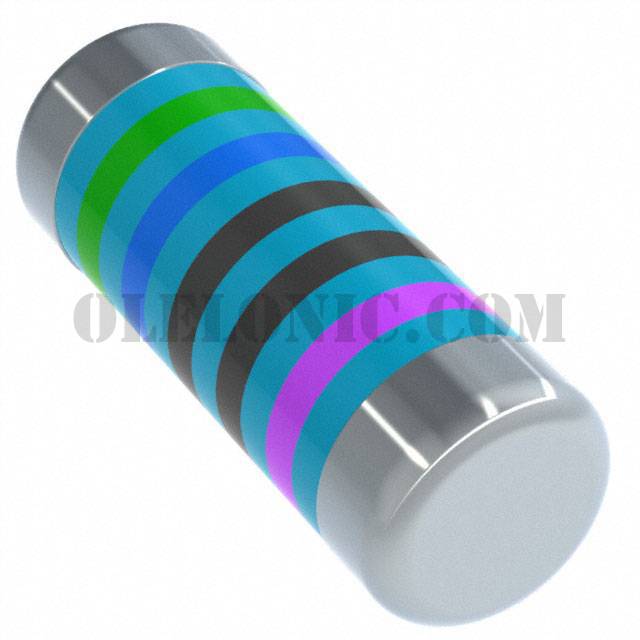

SMA-A0204BTNX560R

Part NumberSMA-A0204BTNX560R

ManufacturerTE Connectivity Passive Product

DescriptionRES 560 OHM 0.1% 2/5W MELF 0204

DatasheetSMA-A Series Datasheet

Package / CaseMELF, 0204

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560 Ohms ±0.1% 0.4W, 2/5W Chip Resistor MELF, 0204 Automotive AEC-Q200 Metal Film

To learn about the specification of SMA-A0204BTNX560R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SMA-A0204BTNX560R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SMA-A0204BTNX560R.
We are offering SMA-A0204BTNX560R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SMA-A0204BTNX560R - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	SMA-A Series Datasheet
Standard Package	3000
Manufacturer	TE Connectivity Passive Product
Series	SMA-A
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	560 Ohms
Tolerance	±0.1%
Power (Watts)	0.4W, 2/5W
Composition	Metal Film
Features	Automotive AEC-Q200
Temperature Coefficient	±15ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	MELF, 0204
Supplier Device Package	0204
Size / Dimension	0.055" Dia x 0.138" L (1.40mm x 3.50mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
