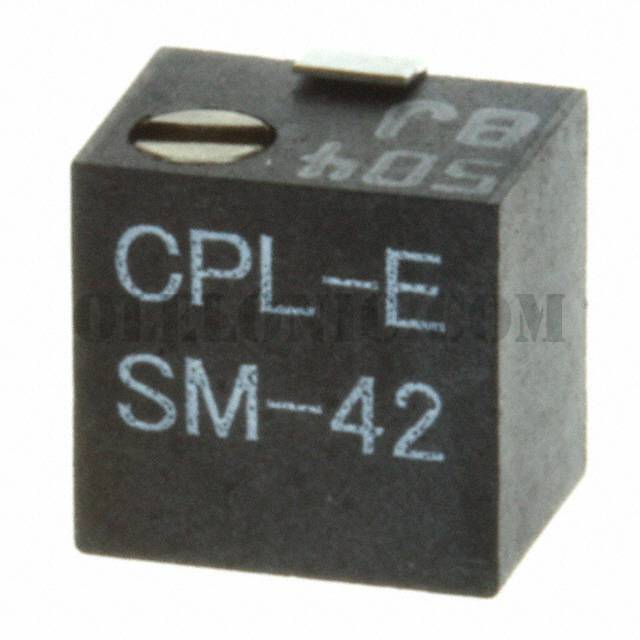

SM-42TA504

Part NumberSM-42TA504

ManufacturerNidec Copal Electronics

DescriptionTRIMMER 500K OHM 0.25W J LEAD

DatasheetSM-42 & 43 Series Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description500 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11 Turn Side Adjustment

To learn about the specification of SM-42TA504, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SM-42TA504 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SM-42TA504.
We are offering SM-42TA504 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SM-42TA504 - Product Attributes

Categories	Potentiometers, Variable Resistors / Trimmer Potentiometers
Datasheet	SM-42 & 43 Series Datasheet
Standard Package	500
Manufacturer	Nidec Copal Electronics
Series	SM42
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	500 kOhms
Power (Watts)	0.25W, 1/4W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	11
Adjustment Type	Side Adjustment
Resistive Material	Cermet
Mounting Type	Surface Mount
Termination Style	J Lead
Size / Dimension	Square - 0.189" L x 0.181" W x 0.146" H (4.80mm x 4.60mm x 3.70mm)
