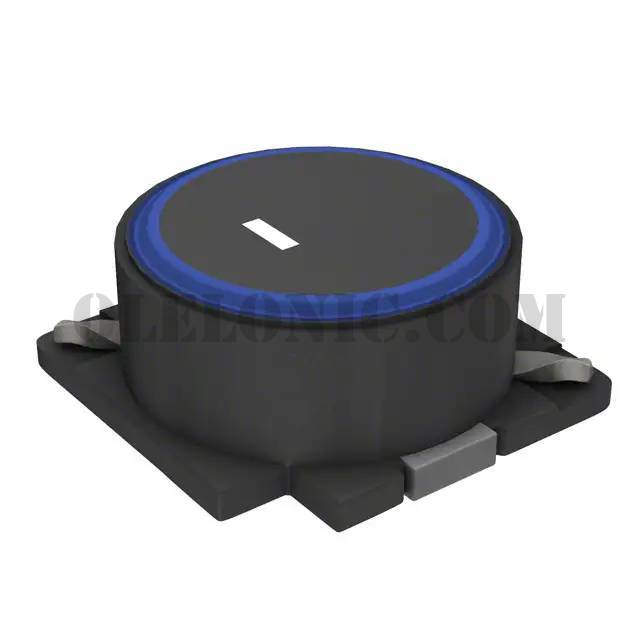

SLF12555T-220M2R3-PF


SLF12555T-220M2R3-PF

Part NumberSLF12555T-220M2R3-PF

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SLF12555T-220M2R3-PF - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package500
ManufacturerTDK Corporation
SeriesSLF
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance22µH
Tolerance±20%
Current Rating (Amps)3.4A
Current - Saturation2.3A
ShieldingShielded
DC Resistance (DCR)33.8mOhm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)0.228" (5.80mm)
