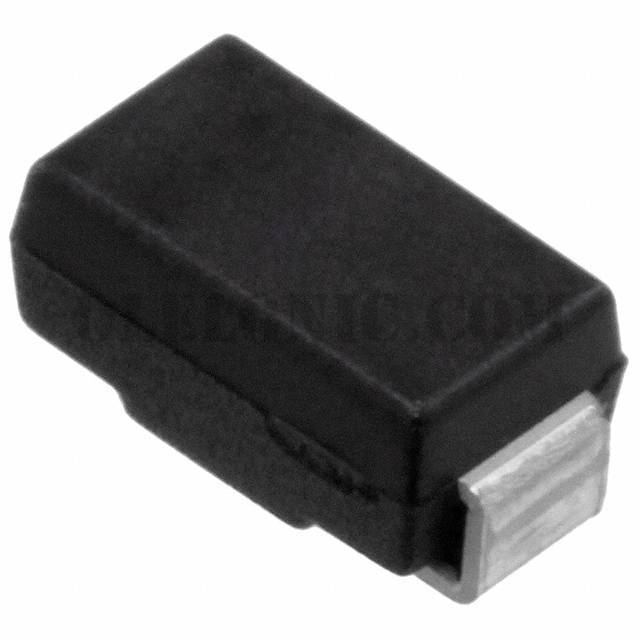

SJPX-H3VR

SJPX-H3VR

Part NumberSJPX-H3VR

ManufacturerSanken

DescriptionDIODE GEN PURP 300V 2A SJP

DatasheetSJPX-H3

Package / Case2-SMD, J-Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 300V 2A Surface Mount SJP

To learn about the specification of SJPX-H3VR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SJPX-H3VR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SJPX-H3VR.
We are offering SJPX-H3VR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SJPX-H3VR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SJPX-H3
Standard Package	1800
Manufacturer	Sanken
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	300V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	30ns
Current - Reverse Leakage @ Vr	50µA @ 300V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	2-SMD, J-Lead
Supplier Device Package	SJP
Operating Temperature - Junction	-40°C ~ 150°C
