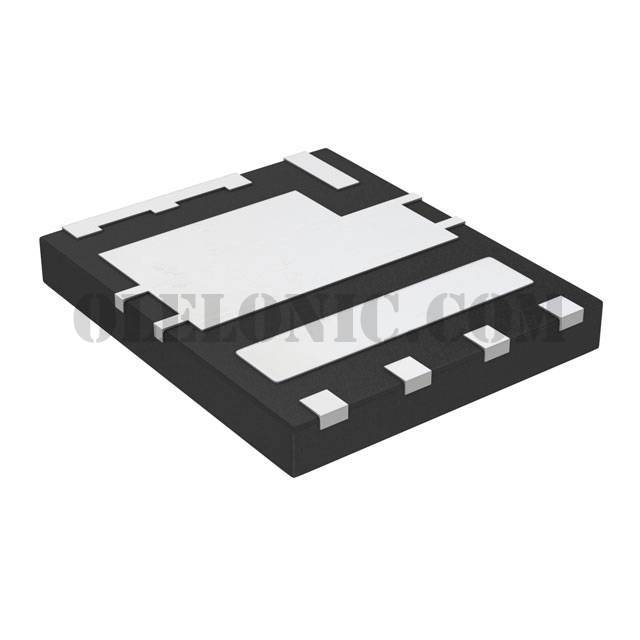

SIZF916DT-T1-GE3

Part NumberSIZF916DT-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH DUAL 30V

DatasheetSIZF916DT

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 23A (Ta), 40A (Tc) 3.4W (Ta), 26.6W (Tc), 4W (Ta), 60W (Tc) Surface Mount 8-PowerPair® (6x5)

To learn about the specification of SIZF916DT-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIZF916DT-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIZF916DT-T1-GE3.
We are offering SIZF916DT-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIZF916DT-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SIZF916DT
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET® Gen IV
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	23A (Ta), 40A (Tc)
Rds On (Max) @ Id, Vgs	4mOhm @ 10A, 10V, 1.25mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA, 2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22nC @ 10V, 95nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1060pF @ 15V, 4320pF @ 15V
Power - Max	3.4W (Ta), 26.6W (Tc), 4W (Ta), 60W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PowerPair® (6x5)
