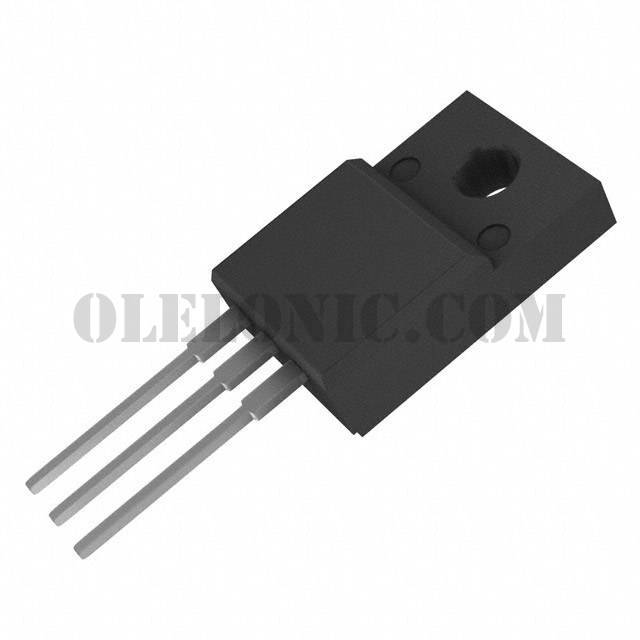

SIHF8N50D-E3


SIHF8N50D-E3

Part NumberSIHF8N50D-E3

Manufacturer

Description

Datasheet

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SIHF8N50D-E3 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1000
ManufacturerVishay Siliconix
Series-
PackagingTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500V
Current - Continuous Drain (Id) @ 25°C8.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs850mOhm @ 4A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs30nC @ 10V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds527pF @ 100V
FET Feature-
Power Dissipation (Max)33W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220 Full Pack
Package / CaseTO-220-3 Full Pack
