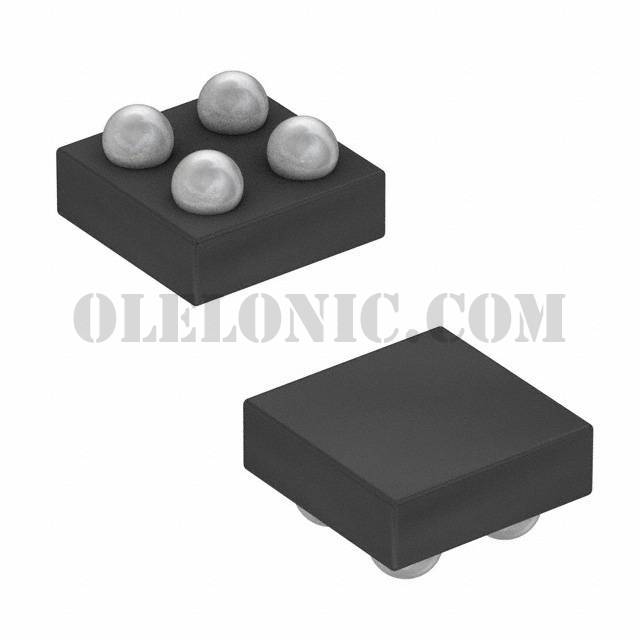

SI8808DB-T2-E1


SI8808DB-T2-E1

Part NumberSI8808DB-T2-E1

Manufacturer

Description

Datasheet

Package / Case4-UFBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SI8808DB-T2-E1 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package3000
ManufacturerVishay Siliconix
SeriesTrenchFET®
PackagingTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C-
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs95mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs10nC @ 8V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds330pF @ 15V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package4-Microfoot
Package / Case4-UFBGA
