SI7913DN-T1-GE3

SI7913DN-T1-GE3

Part NumberSI7913DN-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET 2P-CH 20V 5A PPAK 1212-8

DatasheetSI7913DN

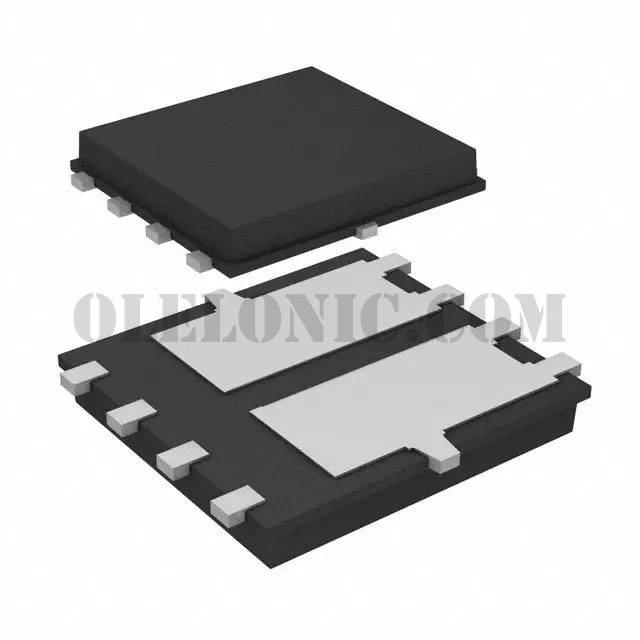

Package / CasePowerPAK® 1212-8 Dual

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 20V 5A 1.3W Surface Mount PowerPAK® 1212-8 Dual

To learn about the specification of SI7913DN-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SI7913DN-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SI7913DN-T1-GE3.
We are offering SI7913DN-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SI7913DN-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SI7913DN
Standard Package	1
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	5A
Rds On (Max) @ Id, Vgs	37mOhm @ 7.4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	24nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	1.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® 1212-8 Dual
Supplier Device Package	PowerPAK® 1212-8 Dual
Base Part Number	SI7913
