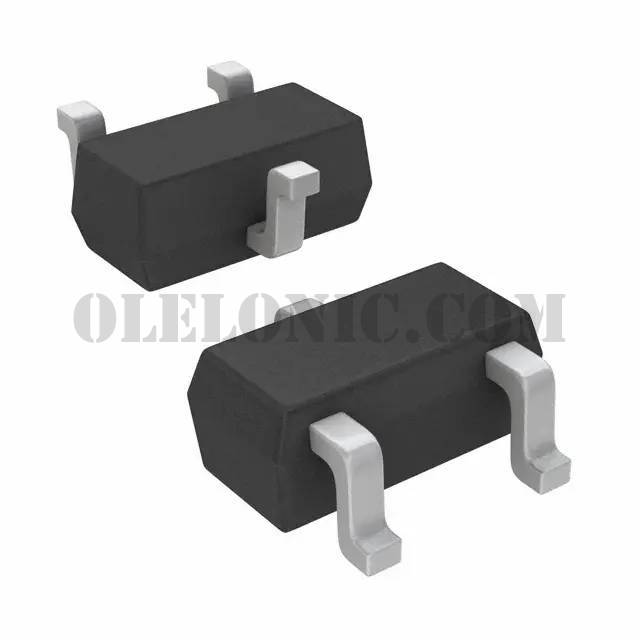

SI1012CR-T1-GE3


SI1012CR-T1-GE3

Part NumberSI1012CR-T1-GE3

Manufacturer

Description

Datasheet

Package / CaseSC-75, SOT-416

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SI1012CR-T1-GE3 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1
ManufacturerVishay Siliconix
SeriesTrenchFET®
PackagingCut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C-
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs396mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs2nC @ 8V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds43pF @ 10V
FET Feature-
Power Dissipation (Max)240mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-75A
Package / CaseSC-75, SOT-416
