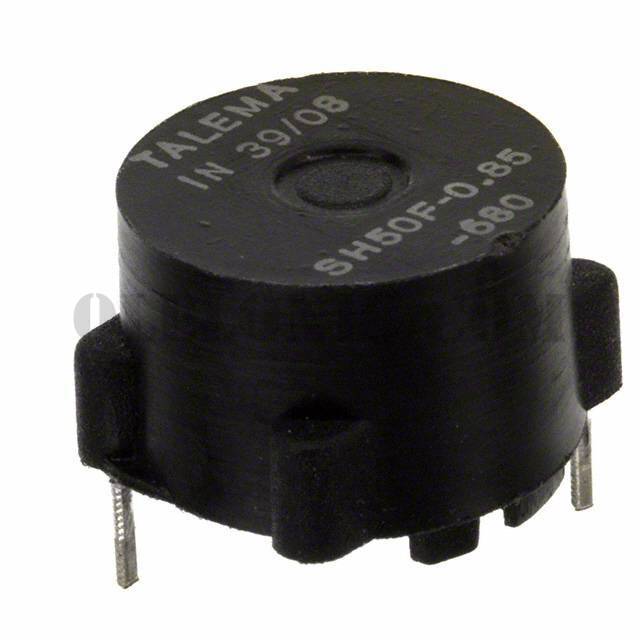

SH50F-0.85-680

SH50F-0.85-680

Part NumberSH50F-0.85-680

ManufacturerAmgis, LLC

DescriptionFIXED IND 680UH 850MA 1.25 OHM

DatasheetSH50 Series

Package / CaseRadial, Vertical Cylinder, 4 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description680µH Unshielded Toroidal Inductor 850mA 1.25Ohm Max Radial, Vertical Cylinder, 4 Leads

To learn about the specification of SH50F-0.85-680, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH50F-0.85-680 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH50F-0.85-680.
We are offering SH50F-0.85-680 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH50F-0.85-680 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SH50 Series
Standard Package	200
Manufacturer	Amgis, LLC
Series	SH50
Packaging	Tray
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	680µH
Tolerance	±20%
Current Rating (Amps)	850mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	1.25Ohm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder, 4 Leads
Supplier Device Package	-
Size / Dimension	0.669" Dia (17.00mm)
Height - Seated (Max)	0.492" (12.50mm)
