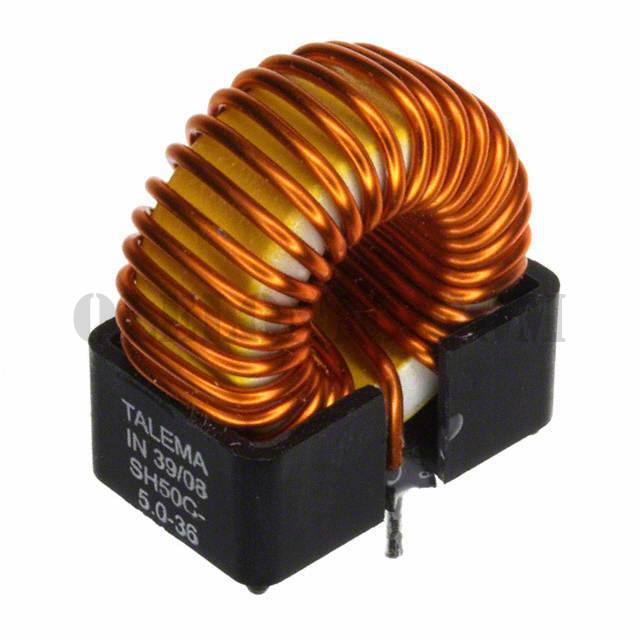

SH50C-5.0-36

Part NumberSH50C-5.0-36

ManufacturerAmgis, LLC

DescriptionFIXED IND 36UH 5A 20 MOHM TH

DatasheetSH50 Series

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description36µH Unshielded Toroidal Inductor 5A 20mOhm Max Radial, Vertical (Open)

To learn about the specification of SH50C-5.0-36, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH50C-5.0-36 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH50C-5.0-36.
We are offering SH50C-5.0-36 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH50C-5.0-36 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SH50 Series

Standard Package

100

Manufacturer

Amgis, LLC

Series

SH50

Packaging

Tray

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

36µH

Tolerance

±20%

Current Rating (Amps)

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

20mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

10kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical (Open)

Supplier Device Package

Size / Dimension

0.949" L x 0.598" W (24.10mm x 15.20mm)

Height - Seated (Max)

1.059" (26.90mm)
