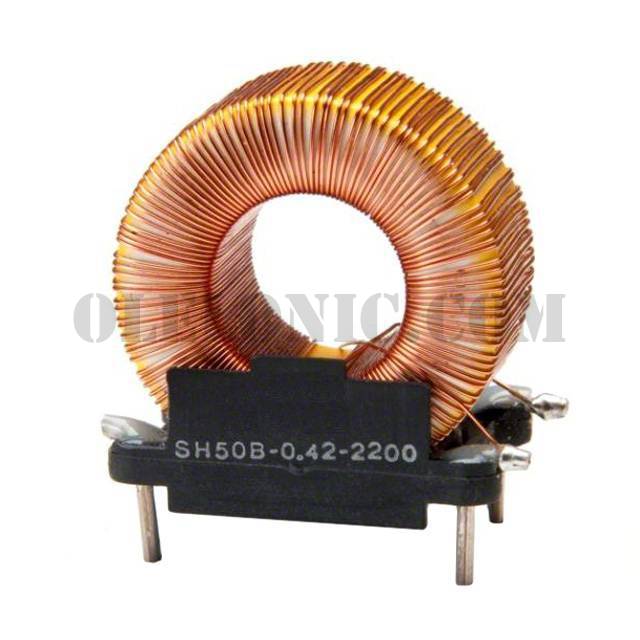

SH50B-0.42-2200

Part NumberSH50B-0.42-2200

ManufacturerAmgis, LLC

DescriptionFIXED IND 2.2MH 420MA 1.8 OHM TH

DatasheetSH50 Series

Package / CaseRadial, Vertical, 4 Leads (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2mH Unshielded Toroidal Inductor 420mA 1.8Ohm Max Radial, Vertical, 4 Leads (Open)

To learn about the specification of SH50B-0.42-2200, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH50B-0.42-2200 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH50B-0.42-2200.
We are offering SH50B-0.42-2200 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH50B-0.42-2200 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SH50 Series

Standard Package

100

Manufacturer

Amgis, LLC

Series

SH50

Packaging

Tray

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

2.2mH

Tolerance

±20%

Current Rating (Amps)

420mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

1.8Ohm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

10kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical, 4 Leads (Open)

Supplier Device Package

Size / Dimension

1.449" L x 0.799" W (36.80mm x 20.30mm)

Height - Seated (Max)

1.378" (35.00mm)
