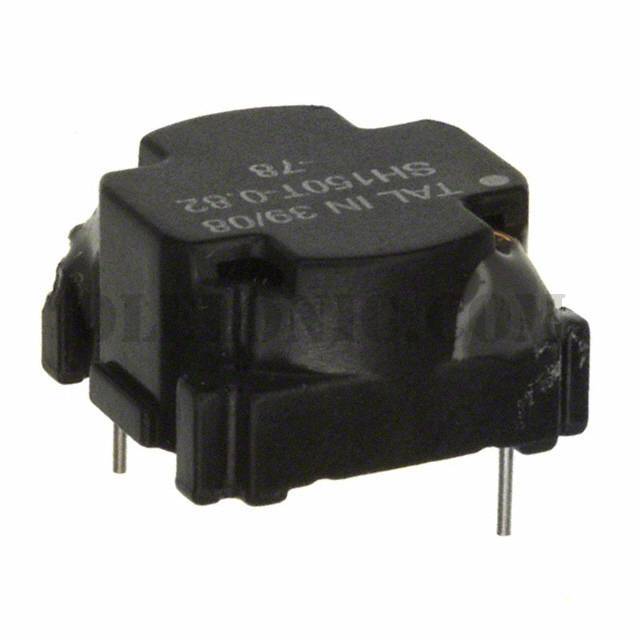

SH150T-0.82-78

Part NumberSH150T-0.82-78

ManufacturerAmgis, LLC

DescriptionFIXED IND 78UH 820MA 300 MOHM TH

DatasheetSH150 Series

Package / CaseRadial, Horizontal - Corner Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description78µH Unshielded Toroidal Inductor 820mA 300mOhm Radial, Horizontal - Corner Terminals

To learn about the specification of SH150T-0.82-78, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH150T-0.82-78 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH150T-0.82-78.
We are offering SH150T-0.82-78 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH150T-0.82-78 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SH150 Series

Standard Package

200

Manufacturer

Amgis, LLC

Series

SH150

Packaging

Tray

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

78µH

Tolerance

±20%

Current Rating (Amps)

820mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

300mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

10kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal - Corner Terminals

Supplier Device Package

Size / Dimension

0.551" L x 0.559" W (14.00mm x 14.20mm)

Height - Seated (Max)

0.311" (7.90mm)
