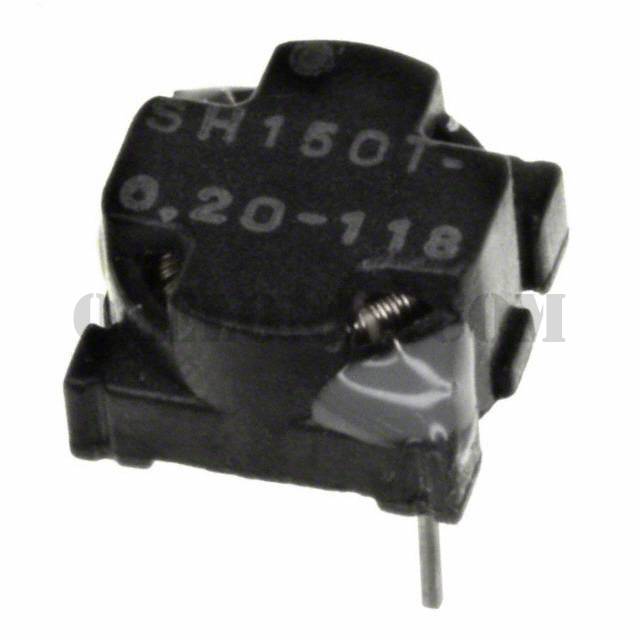

SH150T-0.20-118

Part NumberSH150T-0.20-118

ManufacturerAmgis, LLC

DescriptionFIXED IND 118UH 200MA 1.8 OHM TH

DatasheetSH150 Series

Package / CaseRadial, Horizontal - Corner Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description118µH Unshielded Toroidal Inductor 200mA 1.8Ohm Radial, Horizontal - Corner Terminals

To learn about the specification of SH150T-0.20-118, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH150T-0.20-118 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH150T-0.20-118.
We are offering SH150T-0.20-118 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH150T-0.20-118 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SH150 Series

Standard Package

200

Manufacturer

Amgis, LLC

Series

SH150

Packaging

Tray

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

118µH

Tolerance

±20%

Current Rating (Amps)

200mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

1.8Ohm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

10kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal - Corner Terminals

Supplier Device Package

Size / Dimension

0.339" L x 0.339" W (8.60mm x 8.60mm)

Height - Seated (Max)

0.201" (5.10mm)
