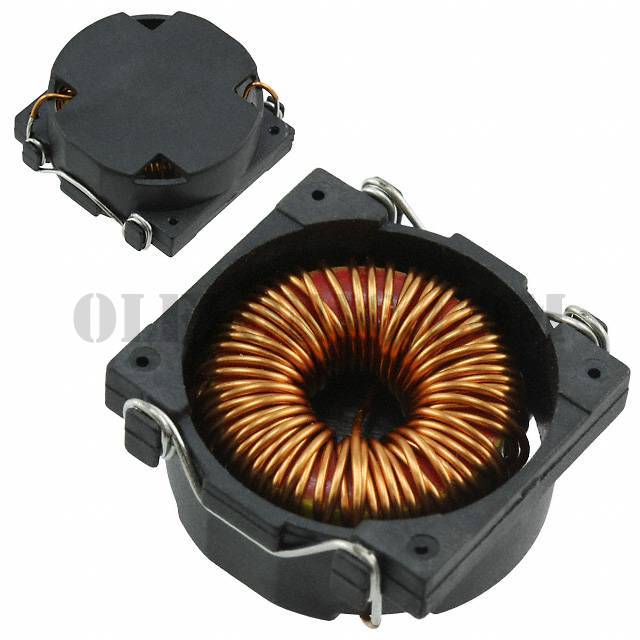

SH150S-2.70-77

Part NumberSH150S-2.70-77

ManufacturerAmgis, LLC

DescriptionFIXED IND 77UH 2.7A 90 MOHM SMD

DatasheetSH150 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description77µH Unshielded Toroidal Inductor 2.7A 90mOhm Nonstandard

To learn about the specification of SH150S-2.70-77, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH150S-2.70-77 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH150S-2.70-77.
We are offering SH150S-2.70-77 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH150S-2.70-77 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SH150 Series

Standard Package

150

Manufacturer

Amgis, LLC

Series

SH150

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

77µH

Tolerance

±20%

Current Rating (Amps)

2.7A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

90mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

10kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.957" L x 0.925" W (24.30mm x 23.50mm)

Height - Seated (Max)

0.427" (10.85mm)
