SH150C-3.00-25

Part NumberSH150C-3.00-25

ManufacturerAmgis, LLC

DescriptionFIXED IND 25UH 3A 40 MOHM TH

DatasheetSH150 Series

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

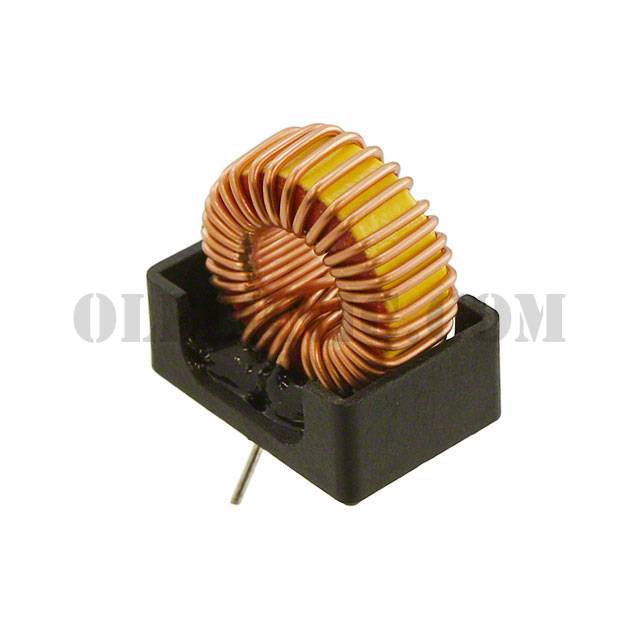

Detailed Description25µH Unshielded Toroidal Inductor 3A 40mOhm Radial, Vertical (Open)

To learn about the specification of SH150C-3.00-25, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH150C-3.00-25 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH150C-3.00-25.
We are offering SH150C-3.00-25 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH150C-3.00-25 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SH150 Series

Standard Package

200

Manufacturer

Amgis, LLC

Series

SH150

Packaging

Tray

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

25µH

Tolerance

±20%

Current Rating (Amps)

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

40mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

10kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical (Open)

Supplier Device Package

Size / Dimension

0.650" L x 0.449" W (16.50mm x 11.40mm)

Height - Seated (Max)

0.760" (19.30mm)
