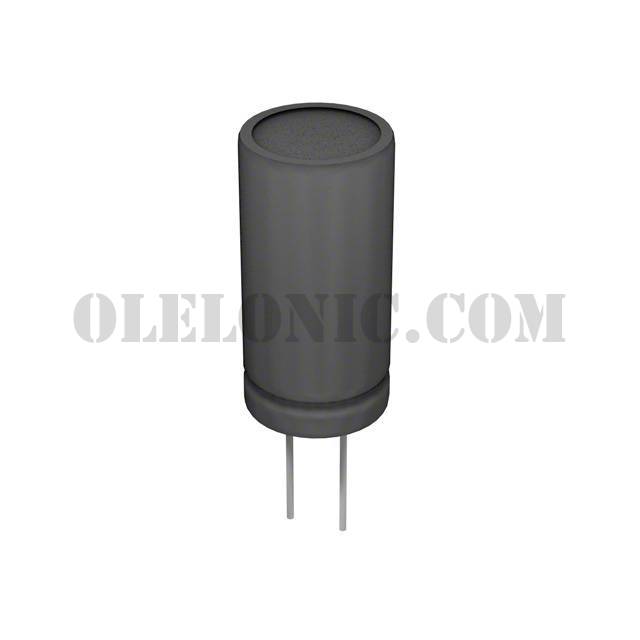

SH101M200ST

Part NumberSH101M200ST

ManufacturerCornell Dubilier Electronics (CDE)

DescriptionCAP ALUM 100UF 20% 200V RADIAL

DatasheetSH Type

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µF 200V Aluminum Electrolytic Capacitors Radial, Can 1.99Ohm @ 120Hz 2000 Hrs @ 105°C

To learn about the specification of SH101M200ST, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH101M200ST with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH101M200ST.
We are offering SH101M200ST for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH101M200ST - Product Attributes

Categories

Capacitors / Aluminum Electrolytic Capacitors

Datasheet

SH Type

Standard Package

500

Manufacturer

Cornell Dubilier Electronics (CDE)

Series

Packaging

Bulk

Part Status

Obsolete

Capacitance

100µF

Tolerance

±20%

Voltage - Rated

200V

ESR (Equivalent Series Resistance)

1.99Ohm @ 120Hz

Lifetime @ Temp.

2000 Hrs @ 105°C

Operating Temperature

-25°C ~ 105°C

Polarization

Polar

Ratings

Applications

General Purpose

Ripple Current @ Low Frequency

335mA @ 120Hz

Ripple Current @ High Frequency

536mA @ 10kHz

Lead Spacing

0.295" (7.50mm)

Size / Dimension

0.630" Dia (16.00mm)

Height - Seated (Max)

1.260" (32.00mm)

Surface Mount Land Size

Mounting Type

Through Hole

Package / Case

Radial, Can
