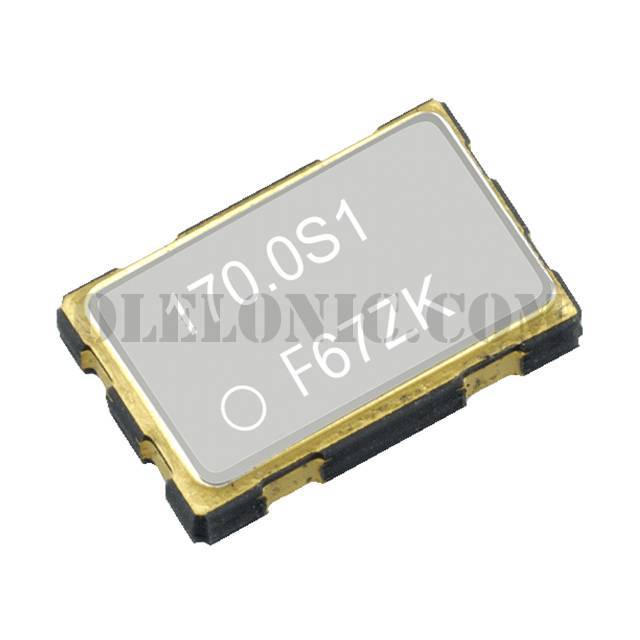

SG-9101CB-D40SHDAB

Part NumberSG-9101CB-D40SHDAB

ManufacturerEPSON

DescriptionXTAL OSC PROG XO CMOS DWN SPRD

DatasheetSG-9101Cx Series Datasheet

Package / Case4-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionXO (Standard) CMOS 670kHz ~ 170MHz Programmable Oscillator 1.62V ~ 3.63V Standby 4-SMD, No Lead

To learn about the specification of SG-9101CB-D40SHDAB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SG-9101CB-D40SHDAB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SG-9101CB-D40SHDAB.
We are offering SG-9101CB-D40SHDAB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SG-9101CB-D40SHDAB - Product Attributes

Categories	Crystals, Oscillators, Resonators / Programmable Oscillators
Datasheet	SG-9101Cx Series Datasheet
Standard Package	1
Manufacturer	EPSON
Series	SG-9101
Packaging	Tube
Part Status	Active
Base Resonator	Crystal
Type	XO (Standard)
Programmable Type	Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range	670kHz ~ 170MHz
Function	Standby
Output	CMOS
Voltage - Supply	1.62V ~ 3.63V
Frequency Stability	-
Frequency Stability (Total)	-
Operating Temperature	-40°C ~ 105°C
Spread Spectrum Bandwidth	-4.00%, Down Spread
Current - Supply (Max)	-
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)	0.051" (1.30mm)
Current - Supply (Disable) (Max)	3.7mA
