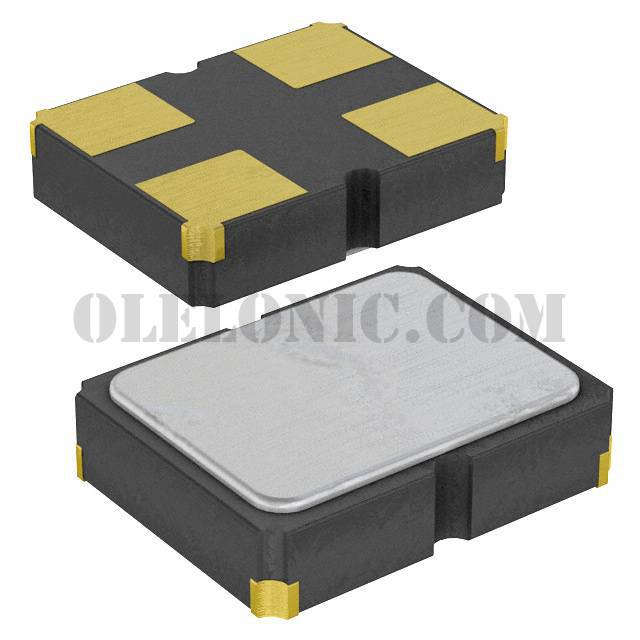

SG-8003CG-SDM

Part NumberSG-8003CG-SDM

ManufacturerEPSON

DescriptionXTAL OSC PRG XO CMOS 2.5V 100PPM

DatasheetSG-8003(CA,CE,CG,JF) Series

Package / Case4-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionXO (Standard) CMOS 1MHz ~ 166MHz Programmable Oscillator 2.5V Standby 4-SMD, No Lead

To learn about the specification of SG-8003CG-SDM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SG-8003CG-SDM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SG-8003CG-SDM.
We are offering SG-8003CG-SDM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SG-8003CG-SDM - Product Attributes

Categories

Crystals, Oscillators, Resonators / Programmable Oscillators

Datasheet

SG-8003(CA,CE,CG,JF) Series

Standard Package

Manufacturer

EPSON

Series

SG-8003

Packaging

Tube

Part Status

Not For New Designs

Base Resonator

Crystal

Type

XO (Standard)

Programmable Type

Programmed by Digi-Key (Enter your frequency in Web Order Notes)

Available Frequency Range

1MHz ~ 166MHz

Function

Standby

Output

CMOS

Voltage - Supply

2.5V

Frequency Stability

±100ppm

Frequency Stability (Total)

Operating Temperature

-40°C ~ 85°C

Spread Spectrum Bandwidth

Current - Supply (Max)

15mA

Ratings

Mounting Type

Surface Mount

Package / Case

4-SMD, No Lead

Size / Dimension

0.098" L x 0.079" W (2.50mm x 2.00mm)

Height - Seated (Max)

0.031" (0.80mm)

Current - Supply (Disable) (Max)

50µA
