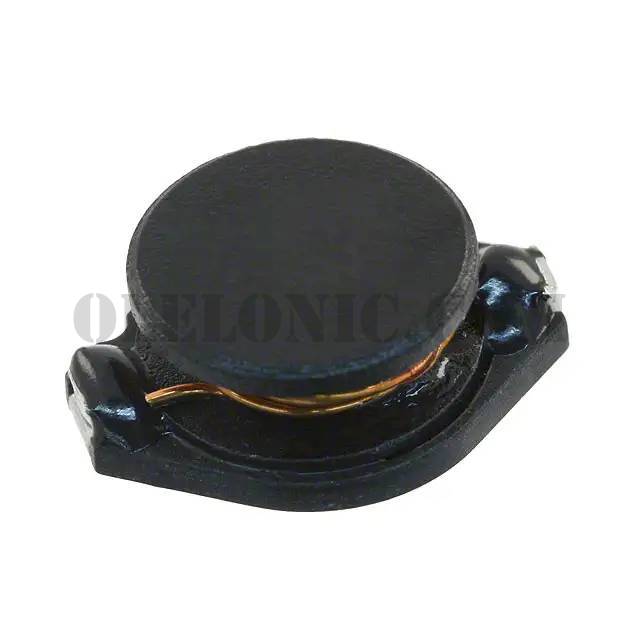

SDR1806-100ML
SDR1806-100ML
Part Number SDR1806-100ML
Description FIXED IND 10UH 5.3A 25 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 10µH Unshielded Wirewound Inductor 5.3A 25mOhm Max Nonstandard
To learn about the specification of SDR1806-100ML, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDR1806-100ML with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDR1806-100ML.
We are offering SDR1806-100ML for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SDR1806-100ML - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SDR1806 Series
Standard Package 1
Manufacturer Bourns Inc.
Series SDR1806
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10µH
Tolerance ±20%
Current Rating (Amps) 5.3A
Current - Saturation 10A
Shielding Unshielded
DC Resistance (DCR) 25mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 25MHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.272" (6.90mm)
Base Part Number SDR1806
