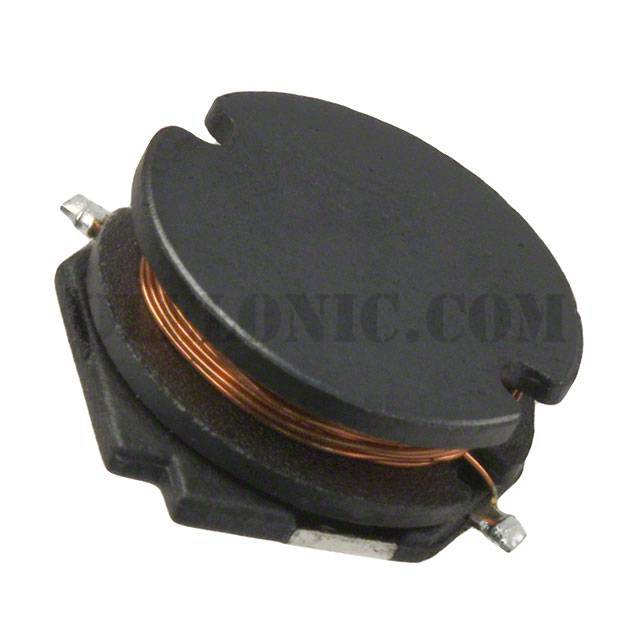

SDR1305-102K
SDR1305-102K
Part Number SDR1305-102K
Description FIXED IND 1MH 460MA 2.35 OHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 1mH Unshielded Wirewound Inductor 460mA 2.35Ohm Max Nonstandard
To learn about the specification of SDR1305-102K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDR1305-102K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDR1305-102K.
We are offering SDR1305-102K for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SDR1305-102K - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SDR1305 Series
Standard Package 1
Manufacturer Bourns Inc.
Series SDR1305
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 1mH
Tolerance ±10%
Current Rating (Amps) 460mA
Current - Saturation 470mA
Shielding Unshielded
DC Resistance (DCR) 2.35Ohm Max
Q @ Freq 41 @ 252kHz
Frequency - Self Resonant 2.7MHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Part Number SDR1305
