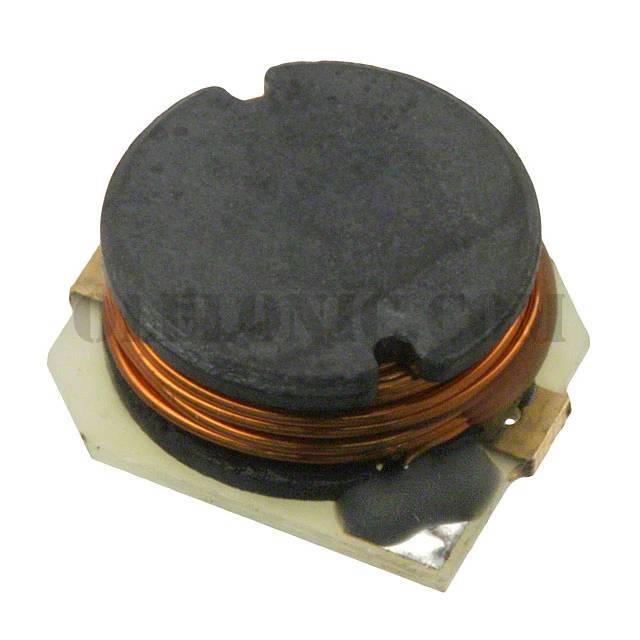

SDR1105-201KL


SDR1105-201KL

Part NumberSDR1105-201KL

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SDR1105-201KL - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerBourns Inc.
SeriesSDR1105
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance200µH
Tolerance±10%
Current Rating (Amps)1A
Current - Saturation1.8A
ShieldingUnshielded
DC Resistance (DCR)650mOhm Max
Q @ Freq-
Frequency - Self Resonant-
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max)0.197" (5.00mm)
Base Part NumberSDR1105
