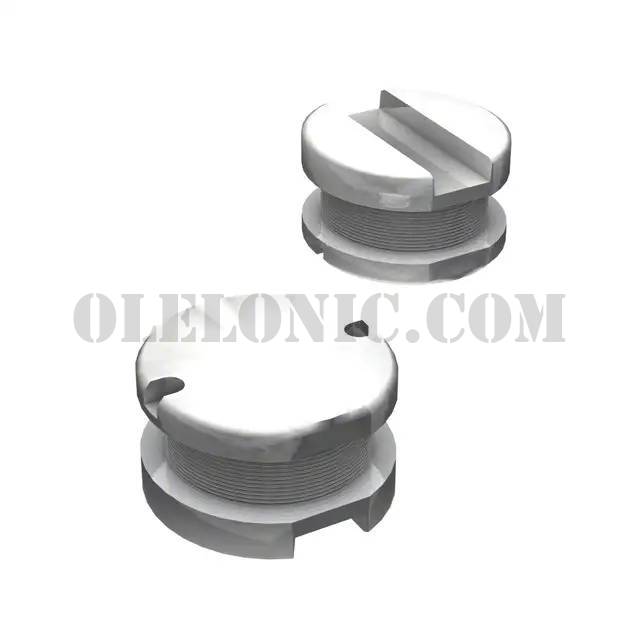

SDR1006-270KL


SDR1006-270KL

Part NumberSDR1006-270KL

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SDR1006-270KL - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerBourns Inc.
SeriesSDR1006
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance27µH
Tolerance±10%
Current Rating (Amps)1.75A
Current - Saturation3.4A
ShieldingUnshielded
DC Resistance (DCR)110mOhm Max
Q @ Freq25 @ 2.52MHz
Frequency - Self Resonant11MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.386" L x 0.386" W (9.80mm x 9.80mm)
Height - Seated (Max)0.228" (5.80mm)
Base Part NumberSDR1006
