SDR0906-331KL
SDR0906-331KL

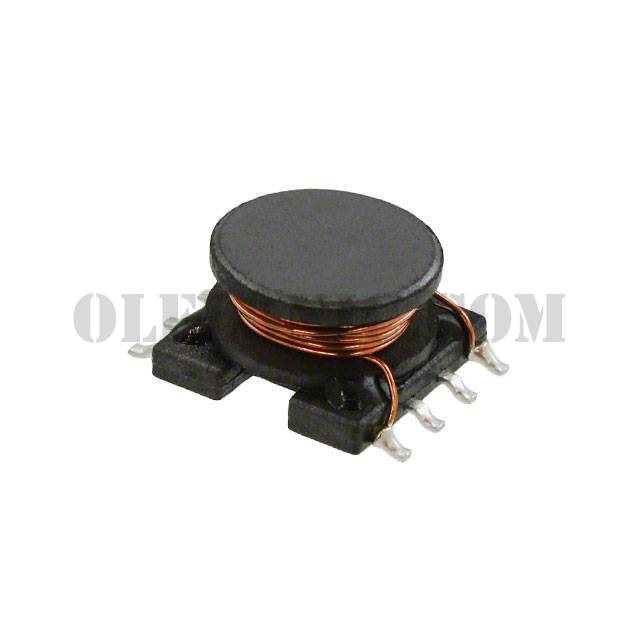

Part Number SDR0906-331KL Description FIXED IND 330UH 500MA 1.27 OHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 330µH Unshielded Wirewound Inductor 500mA 1.27Ohm Max Nonstandard
To learn about the specification of SDR0906-331KL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDR0906-331KL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDR0906-331KL.
We are offering SDR0906-331KL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SDR0906-331KL - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SDR0906 Series Standard Package 600 Manufacturer Bourns Inc. Series SDR0906 Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Ferrite Inductance 330µH Tolerance ±10% Current Rating (Amps) 500mA Current - Saturation 650mA Shielding Unshielded DC Resistance (DCR) 1.27Ohm Max Q @ Freq 15 @ 796kHz Frequency - Self Resonant 5MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 1kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.492" L x 0.413" W (12.50mm x 10.50mm) Height - Seated (Max) 0.248" (6.30mm) Base Part Number SDR0906
