SDR0503-822JL
SDR0503-822JL

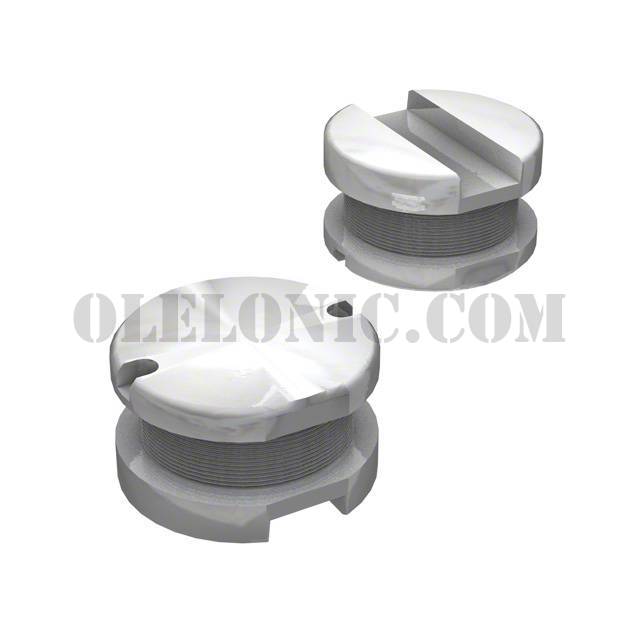

Part Number SDR0503-822JL Description FIXED IND 8.2MH 30MA 92 OHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 8.2mH Unshielded Wirewound Inductor 30mA 92Ohm Max Nonstandard
To learn about the specification of SDR0503-822JL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDR0503-822JL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDR0503-822JL.
We are offering SDR0503-822JL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SDR0503-822JL - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SDR0503 Series Standard Package 1 Manufacturer Bourns Inc. Series SDR0503 Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core Ferrite Inductance 8.2mH Tolerance ±5% Current Rating (Amps) 30mA Current - Saturation 45mA Shielding Unshielded DC Resistance (DCR) 92Ohm Max Q @ Freq 40 @ 252kHz Frequency - Self Resonant 1MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 1kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.197" L x 0.189" W (5.00mm x 4.80mm) Height - Seated (Max) 0.130" (3.30mm) Base Part Number SDR0503
