SDQ12-220-R

Part NumberSDQ12-220-R

ManufacturerEaton - Electronics Division

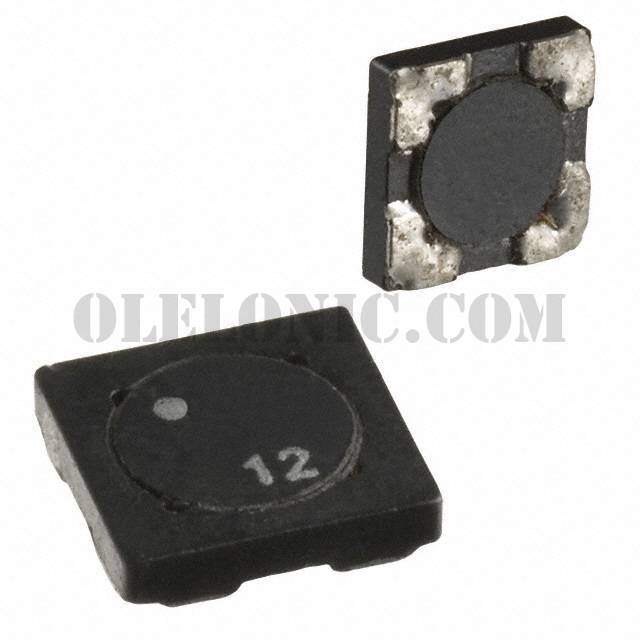

DescriptionINDUCT ARRAY 2 COIL 22.09UH SMD

DatasheetSDQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 88.36µH Inductance - Connected in Series 22.09µH Inductance - Connected in Parallel 833.2mOhm DC Resistance (DCR) - Parallel 548mA Nonstandard

To learn about the specification of SDQ12-220-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDQ12-220-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDQ12-220-R.
We are offering SDQ12-220-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SDQ12-220-R - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

SDQ Series

Standard Package

3800

Manufacturer

Eaton - Electronics Division

Series

SDQ

Packaging

Tape & Reel (TR)

Part Status

Active

Number of Coils

Inductance - Connected In Parallel

22.09µH

Inductance - Connected In Series

88.36µH

Tolerance

±20%

Current Rating - Parallel

548mA

Current Rating - Series

274mA

Current Saturation - Parallel

647mA

Current Saturation - Series

323mA

DC Resistance (DCR) - Parallel

833.2mOhm

DC Resistance (DCR) - Series

3.33Ohm

Shielding

Shielded

Ratings

Operating Temperature

-40°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.205" L x 0.205" W (5.20mm x 5.20mm)

Height

0.047" (1.19mm)
