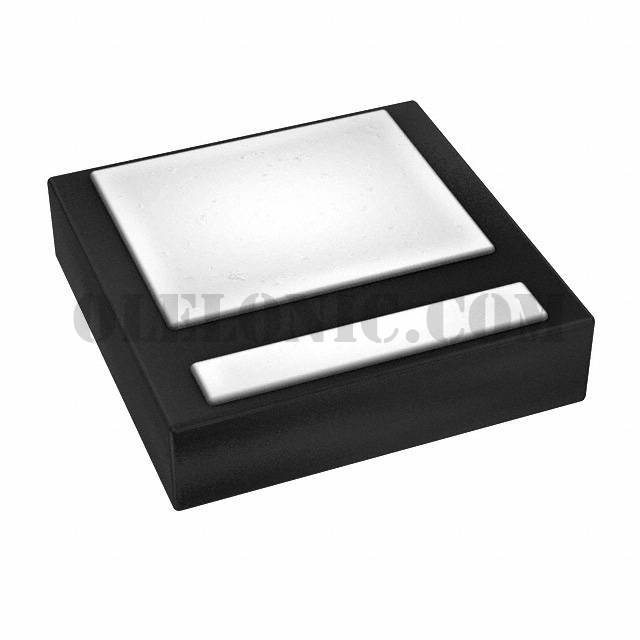

SDM1100LP-7

SDM1100LP-7

Part NumberSDM1100LP-7

ManufacturerDiodes Incorporated

DescriptionDIODE SCHOTTKY 100V 1A DFN2020-2

DatasheetSDM1100LP

Package / Case2-UDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 100V 1A Surface Mount U-DFN2020-2

To learn about the specification of SDM1100LP-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDM1100LP-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDM1100LP-7.
We are offering SDM1100LP-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SDM1100LP-7 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SDM1100LP
Standard Package	1
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	770mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	350µA @ 100V
Capacitance @ Vr, F	40pF @ 5V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-UDFN
Supplier Device Package	U-DFN2020-2
Operating Temperature - Junction	-55°C ~ 175°C
