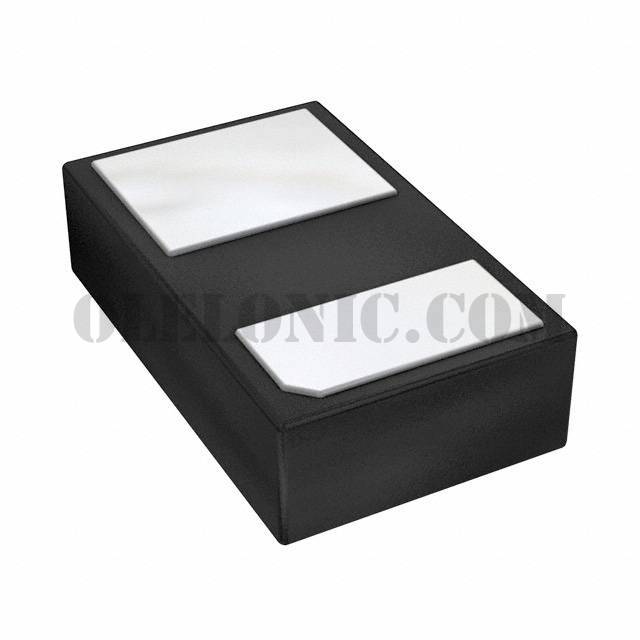

SDM05U40CSP-7

SDM05U40CSP-7

Part NumberSDM05U40CSP-7

ManufacturerDiodes Incorporated

DescriptionDIODE SCHTKY 40V 500MA X3WLB1006

DatasheetSDM05U40CSP

Package / Case2-XDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 500mA Surface Mount X3-WLB1006-2

To learn about the specification of SDM05U40CSP-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDM05U40CSP-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDM05U40CSP-7.
We are offering SDM05U40CSP-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SDM05U40CSP-7 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SDM05U40CSP
Standard Package	5000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	460mV @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	75µA @ 40V
Capacitance @ Vr, F	35pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-XDFN
Supplier Device Package	X3-WLB1006-2
Operating Temperature - Junction	-55°C ~ 150°C
