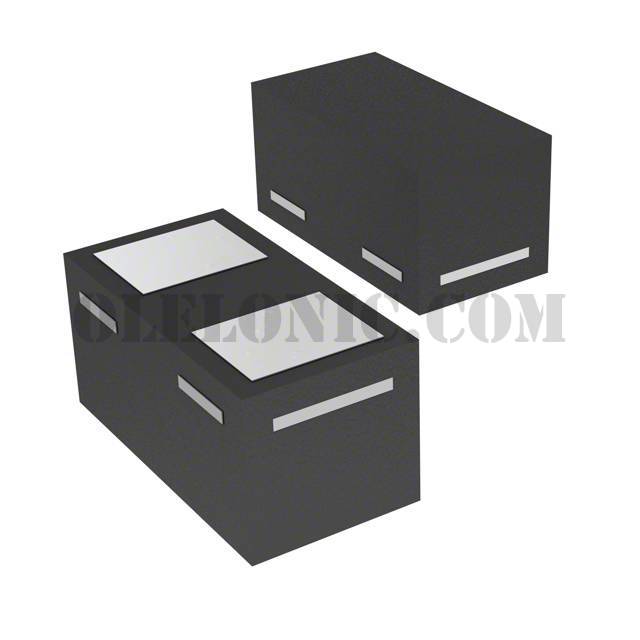

SDM02M30LP3-7B

SDM02M30LP3-7B

Part NumberSDM02M30LP3-7B

ManufacturerDiodes Incorporated

DescriptionDIODE SCHOTTKY 30V 100MA 2-XFDFN

DatasheetSDM02M30LP3

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 100mA Surface Mount 2-X3-DFN0603

To learn about the specification of SDM02M30LP3-7B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDM02M30LP3-7B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDM02M30LP3-7B.
We are offering SDM02M30LP3-7B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SDM02M30LP3-7B - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SDM02M30LP3
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	450mV @ 10mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	1.6ns
Current - Reverse Leakage @ Vr	400nA @ 30V
Capacitance @ Vr, F	2.7pF @ 5V, 1MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	2-X3-DFN0603
Operating Temperature - Junction	-55°C ~ 150°C
