Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	SDB101-107
Standard Package	1500
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	10µA @ 600V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

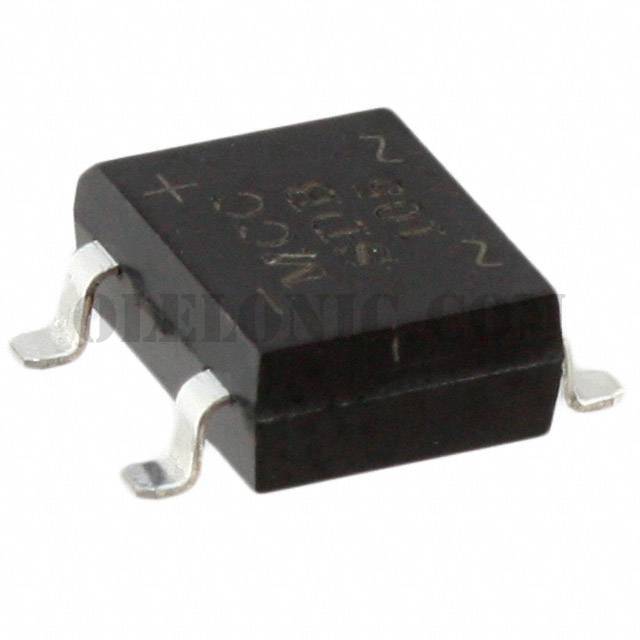

Package / Case	4-SMD, Gull Wing
Supplier Device Package	SDB-1
Base Part Number	SDB105

CDBHM240L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 40V Surface Mount MBS-2,	View
MB6STR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 600V Surface Mount MBS,	View
B10S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount MBS,	View
YBS2204G RAG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 400V Surface Mount YBS,	View
RMB6S RCG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount MBS,	View
KMB210STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS,	View
TBS22M-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-TBS,	View
CD-MBL106S	Bourns Inc., Bridge Rectifier Single Phase Standard 600V Surface Mount,	View
ABS20M REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABS,	View
CBRSDSH2-100 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 100V Surface Mount 4-SMDIP,	View
CBR1-D020S TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 200V Surface Mount 4-SMDIP,	View
SDB204-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 400V Surface Mount SDB-1,	View

SDB105-TP

Part NumberSDB105-TP
