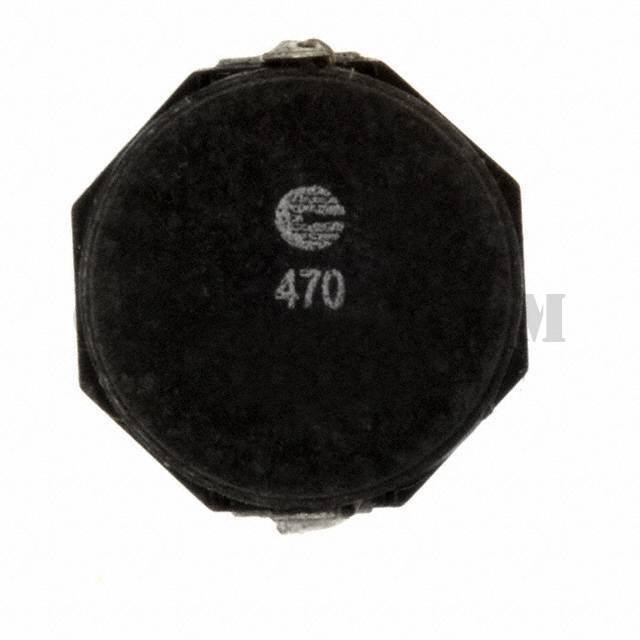

SD8328-470-R

Part NumberSD8328-470-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 47UH 1.3A 194 MOHM SMD

DatasheetSD8328 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description47µH Shielded Wirewound Inductor 1.3A 194mOhm Max Nonstandard

To learn about the specification of SD8328-470-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SD8328-470-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SD8328-470-R.
We are offering SD8328-470-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SD8328-470-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SD8328 Series

Standard Package

1280

Manufacturer

Eaton - Electronics Division

Series

SD8328

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

47µH

Tolerance

±30%

Current Rating (Amps)

1.3A

Current - Saturation

1.2A

Shielding

Shielded

DC Resistance (DCR)

194mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.374" L x 0.327" W (9.50mm x 8.30mm)

Height - Seated (Max)

0.118" (3.00mm)
