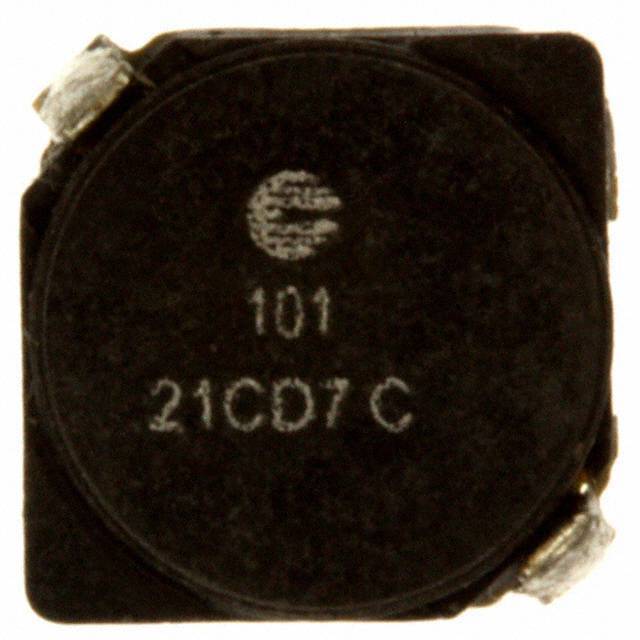

SD7030-101-R

Part NumberSD7030-101-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 95.5UH 700MA 535 MOHM

DatasheetSD7030 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description95.5µH Shielded Wirewound Inductor 700mA 535mOhm Max Nonstandard

To learn about the specification of SD7030-101-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SD7030-101-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SD7030-101-R.
We are offering SD7030-101-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SD7030-101-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SD7030 Series

Standard Package

1500

Manufacturer

Eaton - Electronics Division

Series

SD7030

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

95.5µH

Tolerance

±30%

Current Rating (Amps)

700mA

Current - Saturation

540mA

Shielding

Shielded

DC Resistance (DCR)

535mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.276" L x 0.276" W (7.00mm x 7.00mm)

Height - Seated (Max)

0.118" (3.00mm)
