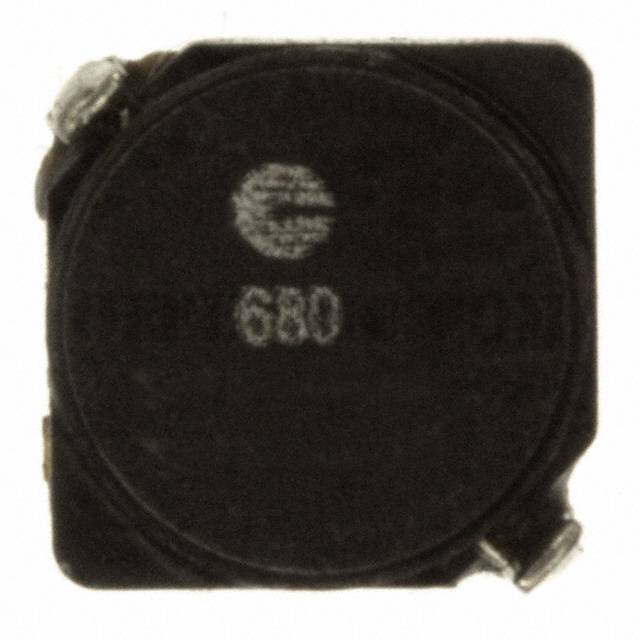

SD6020-680-R

Part NumberSD6020-680-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 68UH 500MA 840 MOHM

DatasheetSD6020 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description68µH Shielded Wirewound Inductor 500mA 840mOhm Max Nonstandard

To learn about the specification of SD6020-680-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SD6020-680-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SD6020-680-R.
We are offering SD6020-680-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SD6020-680-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SD6020 Series

Standard Package

2600

Manufacturer

Eaton - Electronics Division

Series

SD6020

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

68µH

Tolerance

±30%

Current Rating (Amps)

500mA

Current - Saturation

430mA

Shielding

Shielded

DC Resistance (DCR)

840mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.236" L x 0.236" W (6.00mm x 6.00mm)

Height - Seated (Max)

0.079" (2.00mm)
