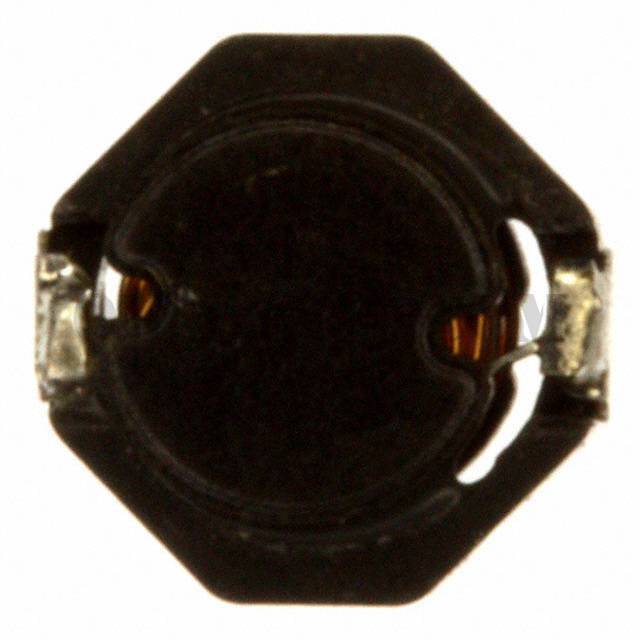

SD53-680-R

Part NumberSD53-680-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 68UH 520MA 525 MOHM

DatasheetSD53 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description68µH Shielded Wirewound Inductor 520mA 525mOhm Max Nonstandard

To learn about the specification of SD53-680-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SD53-680-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SD53-680-R.
We are offering SD53-680-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SD53-680-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SD53 Series

Standard Package

2600

Manufacturer

Eaton - Electronics Division

Series

SD53

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

68µH

Tolerance

±20%

Current Rating (Amps)

520mA

Current - Saturation

580mA

Shielding

Shielded

DC Resistance (DCR)

525mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.205" L x 0.205" W (5.20mm x 5.20mm)

Height - Seated (Max)

0.118" (3.00mm)
