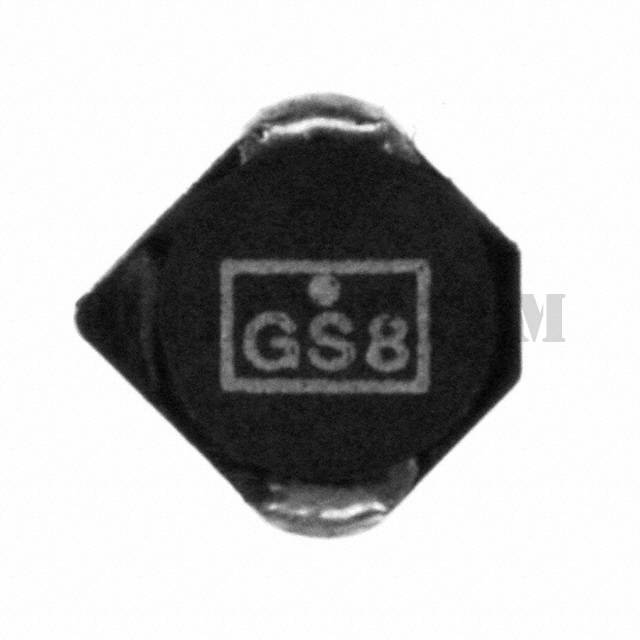

SD3814-4R7-R

Part NumberSD3814-4R7-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 4.7UH 1.06A 141 MOHM

DatasheetSD38 Series Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4.7µH Shielded Wirewound Inductor 1.06A 141mOhm Nonstandard

To learn about the specification of SD3814-4R7-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SD3814-4R7-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SD3814-4R7-R.
We are offering SD3814-4R7-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SD3814-4R7-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SD38 Series Datasheet

Standard Package

4150

Manufacturer

Eaton - Electronics Division

Series

SD38

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Wirewound

Material - Core

Ferrite

Inductance

4.7µH

Tolerance

±15%

Current Rating (Amps)

1.06A

Current - Saturation

1.29A

Shielding

Shielded

DC Resistance (DCR)

141mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.157" L x 0.157" W (4.00mm x 4.00mm)

Height - Seated (Max)

0.055" (1.40mm)
