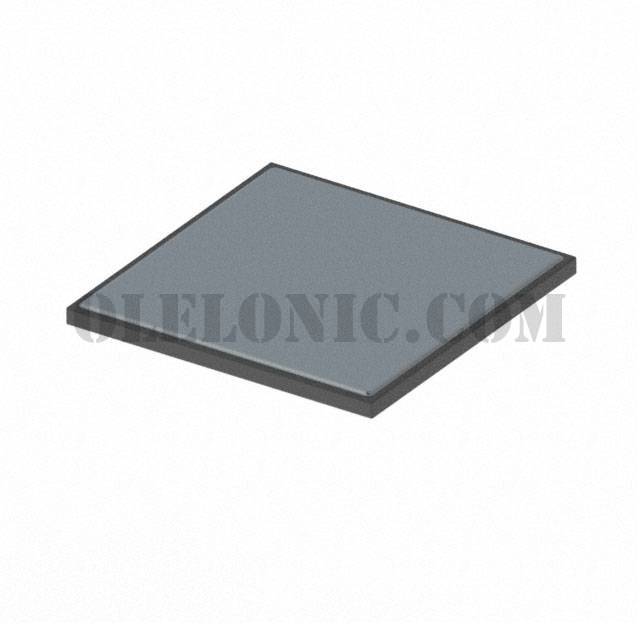

SD175SB45A.T

SD175SB45A.T

Part NumberSD175SB45A.T

ManufacturerSMC Diode Solutions

DescriptionDIODE SCHOTTKY 45V 30A DIE

DatasheetSD175SB45A

Package / CaseDie

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 45V 30A Surface Mount Die

To learn about the specification of SD175SB45A.T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SD175SB45A.T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SD175SB45A.T.
We are offering SD175SB45A.T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SD175SB45A.T - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SD175SB45A
Standard Package	100
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Tray
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	640mV @ 30A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	800µA @ 45V
Capacitance @ Vr, F	1600pF @ 5V, 1MHz
Mounting Type	Surface Mount
Package / Case	Die
Supplier Device Package	Die
Operating Temperature - Junction	175°C (Max)
