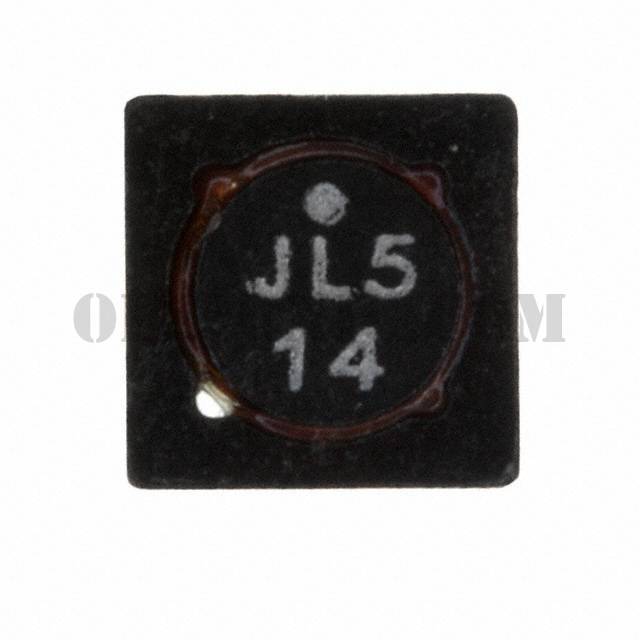

SD14-6R9-R

Part NumberSD14-6R9-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 6.9UH 1.35A 136.3 MOHM

DatasheetSD Series Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description6.9µH Shielded Wirewound Inductor 1.35A 136.3mOhm Nonstandard

To learn about the specification of SD14-6R9-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SD14-6R9-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SD14-6R9-R.
We are offering SD14-6R9-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SD14-6R9-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SD Series Datasheet

Standard Package

3800

Manufacturer

Eaton - Electronics Division

Series

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

6.9µH

Tolerance

±20%

Current Rating (Amps)

1.35A

Current - Saturation

1.41A

Shielding

Shielded

DC Resistance (DCR)

136.3mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.205" L x 0.205" W (5.20mm x 5.20mm)

Height - Seated (Max)

0.057" (1.45mm)
