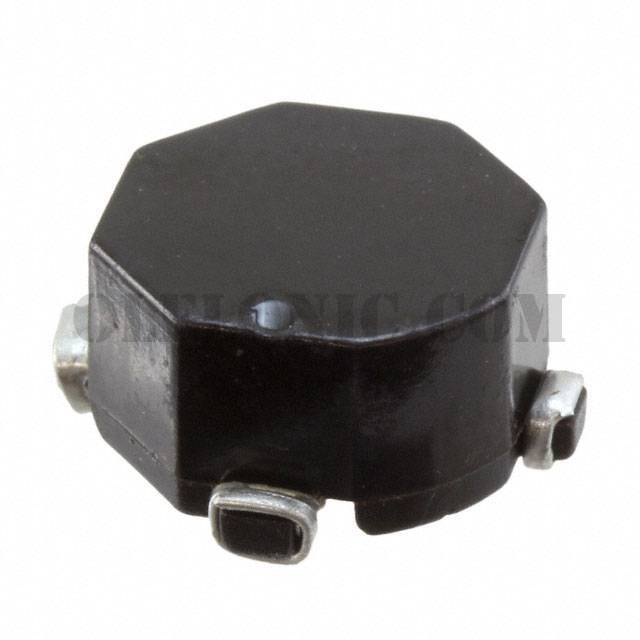

SCX147-8R0

Part NumberSCX147-8R0

ManufacturerSignal Transformer

DescriptionINDUCT ARRAY 2 COIL 8UH SMD

DatasheetSCX147 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 33.12µH Inductance - Connected in Series 8µH Inductance - Connected in Parallel 19mOhm Max DC Resistance (DCR) - Parallel 3.5A Nonstandard

To learn about the specification of SCX147-8R0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SCX147-8R0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SCX147-8R0.
We are offering SCX147-8R0 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SCX147-8R0 - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

SCX147 Series

Standard Package

500

Manufacturer

Signal Transformer

Series

SCX147

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Number of Coils

Inductance - Connected In Parallel

8µH

Inductance - Connected In Series

33.12µH

Tolerance

±20%

Current Rating - Parallel

3.5A

Current Rating - Series

1.75A

DC Resistance (DCR) - Parallel

19mOhm Max

DC Resistance (DCR) - Series

73mOhm Max

Shielding

Unshielded

Ratings

Operating Temperature

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.567" L x 0.567" W (14.40mm x 14.40mm)

Height

0.276" (7.00mm)
